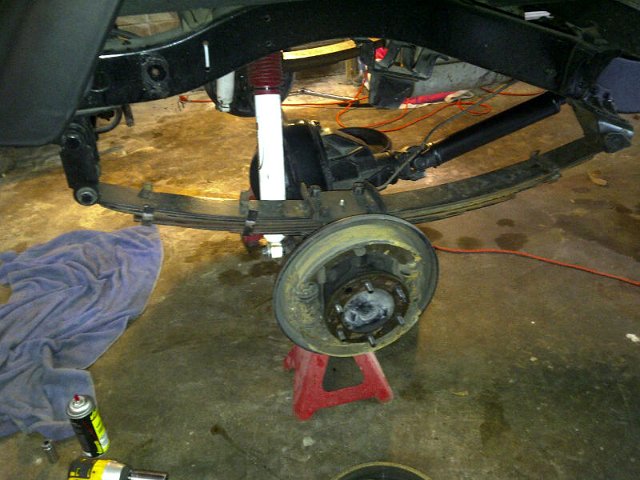

  • Drum brakes in like new condition. Replacing with Disk Brakes while installing the Aussie Locker width:640;;height:480

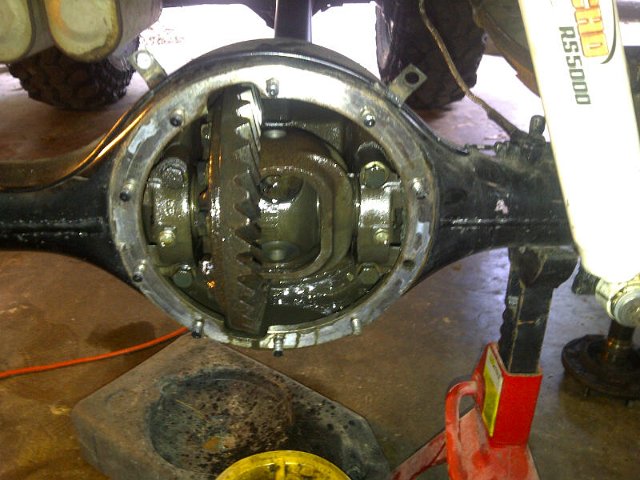

  • rear gears could be better, but they're quiet. Aussie Locker install went without a hitch. width:640;;height:480

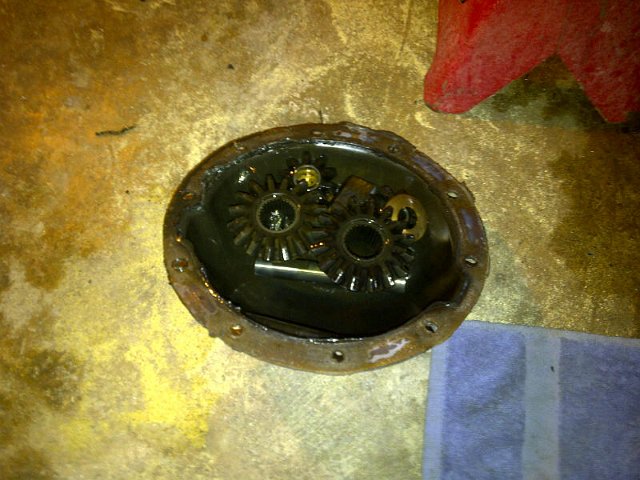

  • stock spiders, etc. width:640;;height:480

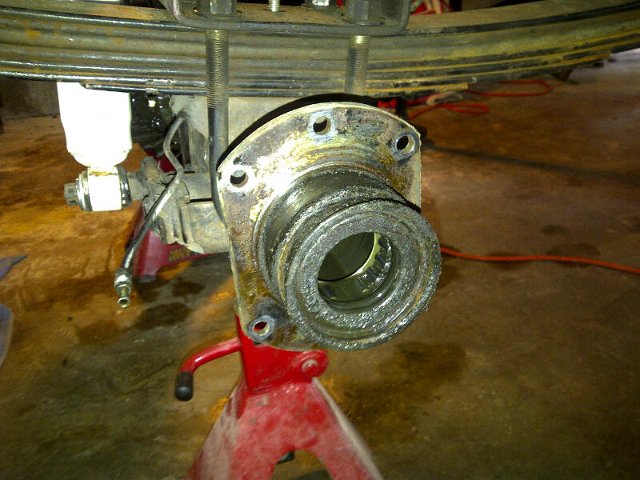

  • Seal leakage, bearings good width:640;;height:480

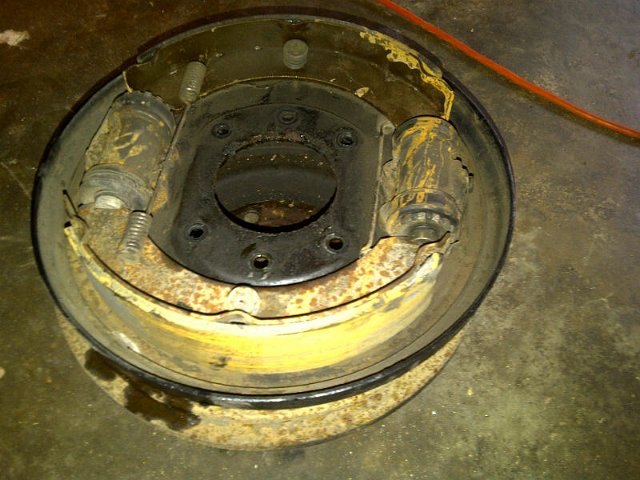

  • brakes looked like new. There was no indication they were working at all. width:640;;height:480

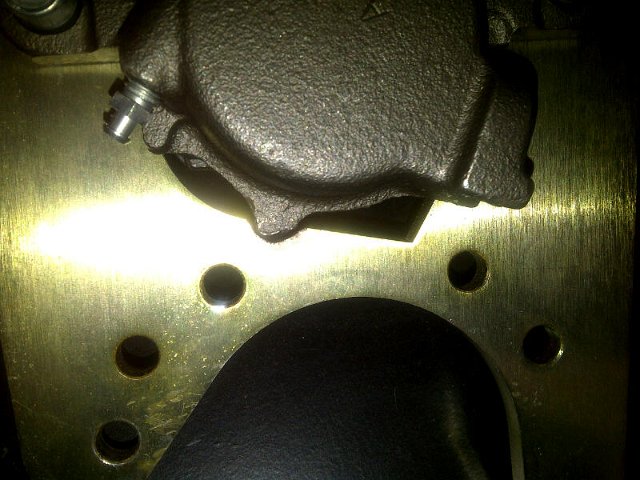

  • JT Outfitters caliper bracket needed grinding to clear the caliper width:640;;height:480
  • Rear disks brakes completed. SOA conversion made it tough to get the upper caliper bolt in place. Had to install everything at once. A pain. width:640;;height:480

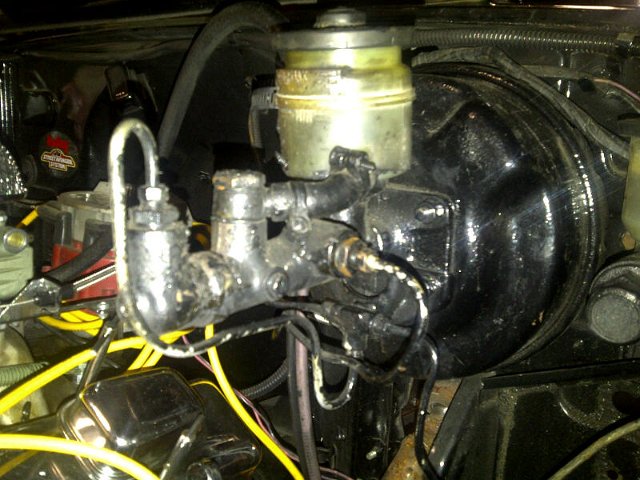

  • Master cylinder- removed residual valve and still no rear brakes. Bled completely, but no pressure applied to the rear brakes even though it has good pedal. width:640;;height:480
